STAS multirail 200 cm + installation kit

The STAS multirail comes in segments of 200 cm (78.75 inch), including a complete installation kit.
Please respect a maximum of 8 rail segments per adapter.

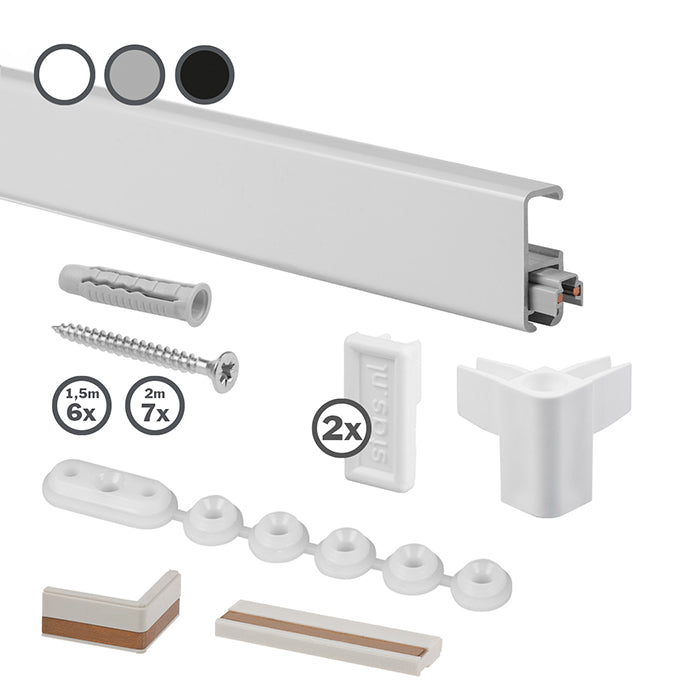

Contents
• 1x STAS multirail white, 200 cm (78.75 inch)
• 6x screw + plug
• 5x rail clip
• 1x rail connector
• 2x end cap
• 1x conductor straight

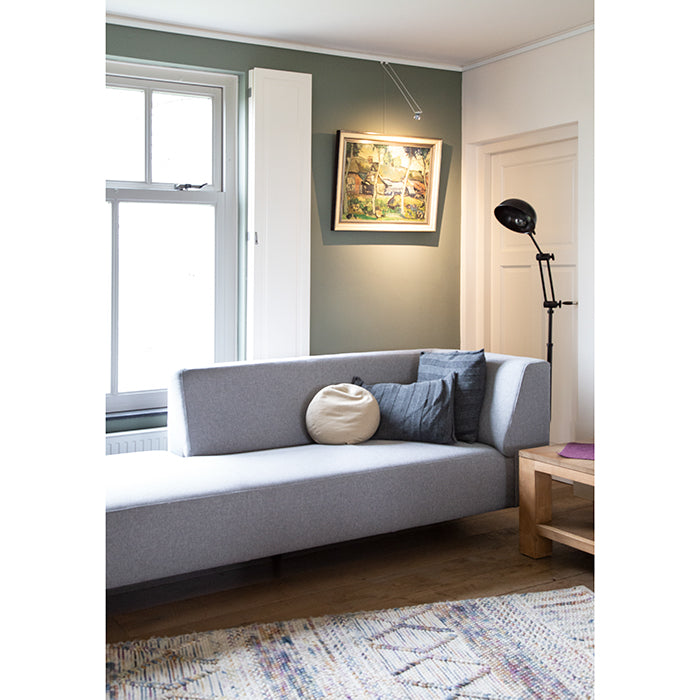

STAS multirail adds elegance, glamour and sophistication to your space and let your works of art take centre stage.

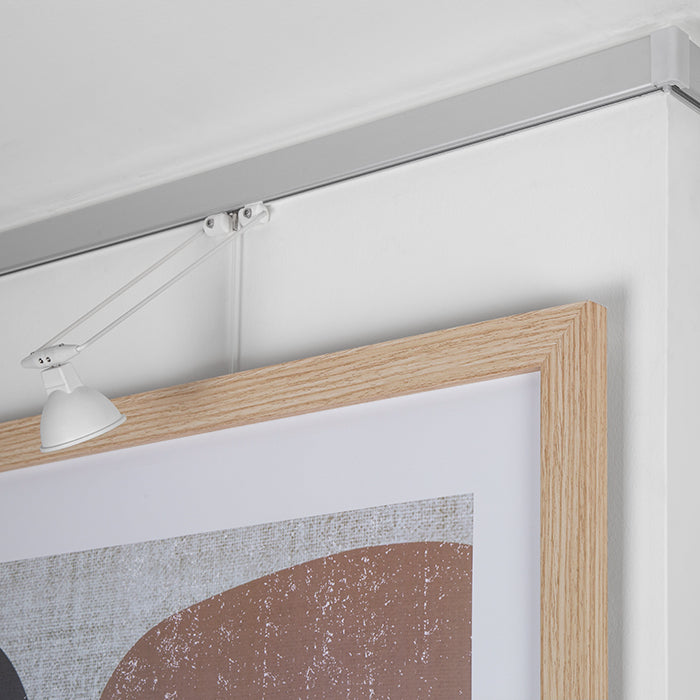

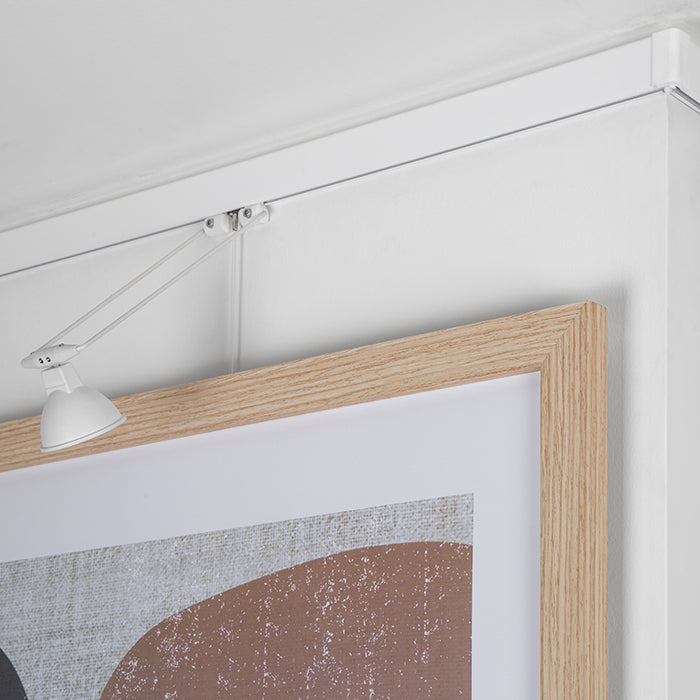

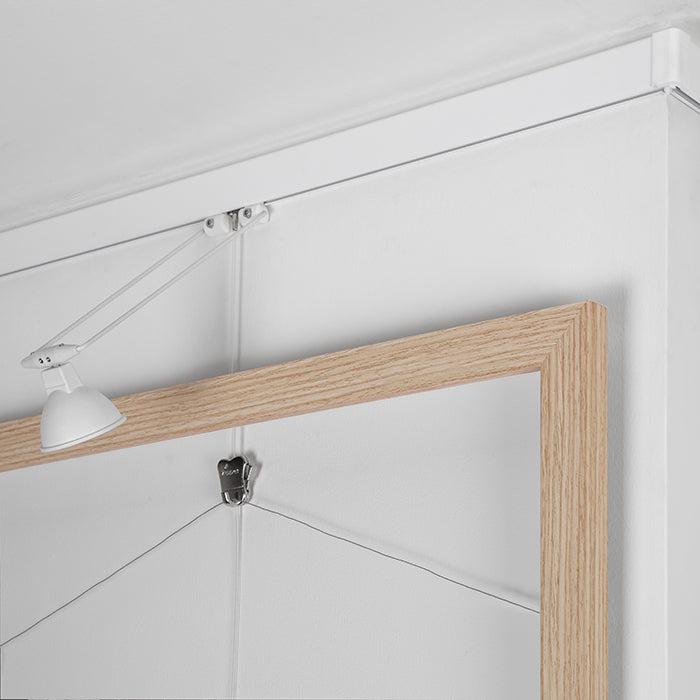

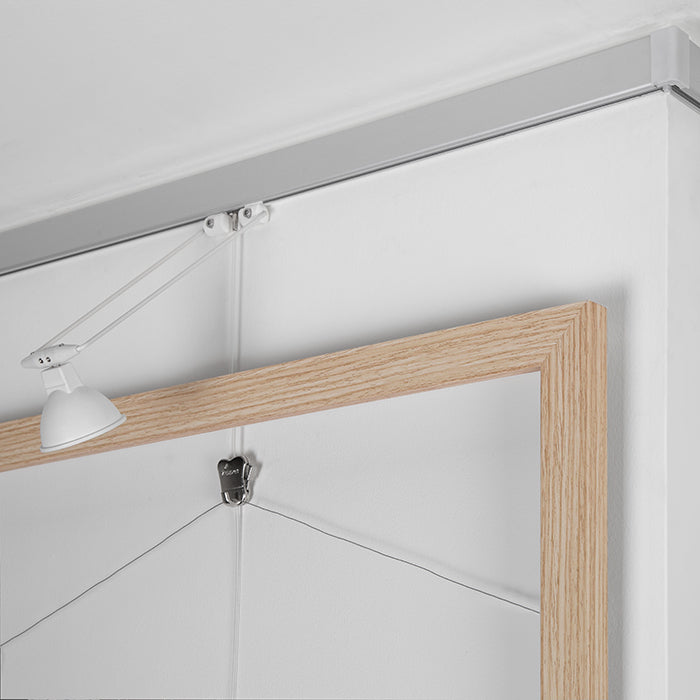

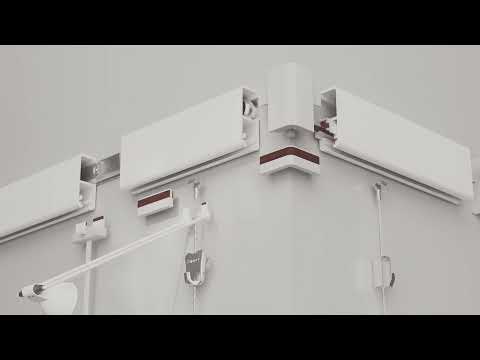

STAS multirail is a globally patented picture hanging system equipped with integrated 12 V power supply wires (low voltage), with a maximum load: 99.21 lbs (45 kg) per meter. Lighting fixtures with LED lamps can be clicked into the rail at any spot to illuminate your wall decorations.

A STAS multirail picture hanging system consists of: 1. Rail: indicate the number of rail segments 78.74 inch (200 cm) you wish to order. Please respect a maximum of 8 segments per adapter. The included installation kit contains all necessary plugs, screws and a straight rail connector to correctly install the rail (corner connectors available separately).
2.Armatures: Choose the number of lighting armatures you need.
3. Choose the amount of LED lights you need. They are not included with the armatures. The output is the equivalent of a regular 20W lamp. You will need one LED light per armature.
4. Power adapter: supplies electricity to your multirail system. One 18 W adapter will supply power to a maximum of 16 meter / 8 segments of rail, and to a maximum of 4 LED lamps (4 W). One STAS multirail adapter 84W when used with LED is suitable for a maximum of 16 meters rail and max 17 LED lamps of 4W.

5. Hooks and cords: finally, choose STAS hooks and cords to complete the system and hang your art.

Would you like to install more than 8 segments of rail and / or more than 10 LED lamps? Please use a second adapter.

CAUTION: if you use multiple adapters, make absolutely sure you create independent circuits. In other words: two adapters cannot be connected! So, NEVER link two segments of rails that are each connected to a different adapter! You can only connect rail segments that share the same adapter.

There are more STAS multirail accessoiries to choose from, this page is an example of the most often chosen armatures and lights.

Specifications:

• Mounting: wall mounted system suitable for most wall types.
• Power: 12 V system (low voltage).
• Dimmable: current adapters are not dimmable.
• Maximum load: 99.21 lbs (45 kg) per meter.
• Rail material: aluminium rail.

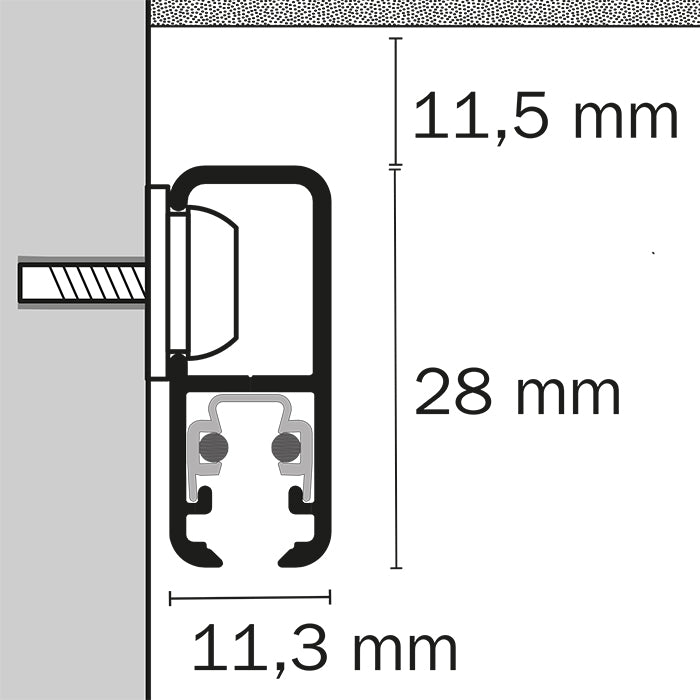

• Rail dimensions: 11 x 28 mm.
• Rail length: 200 cm (78.75 inch) per rail segment (a maximum of 8 segments per power adapter).

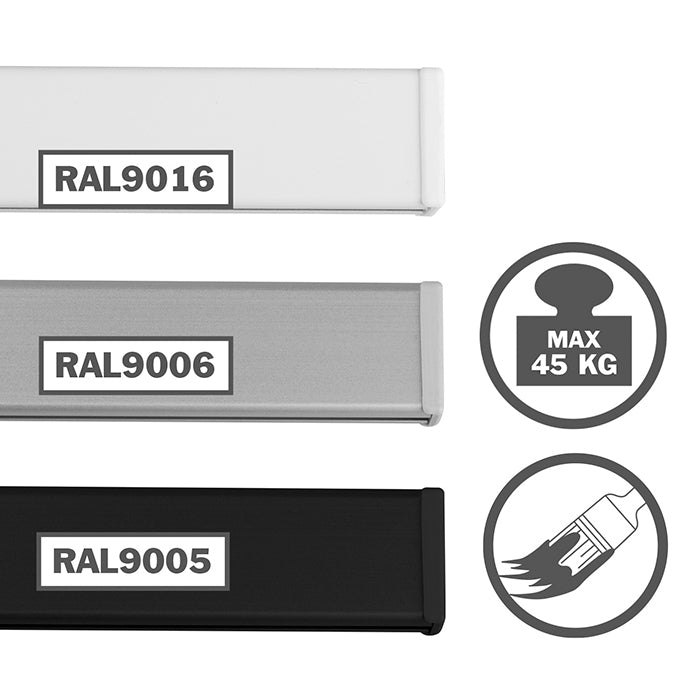

• Rail colour: white/natural aluminum

Download:

STAS multirail manual | Architect drawing | Product info
